Bottled automatic water filling equipment
The water filling line is designed and manufactured by our company. It belongs to micro negative pressure bottle washing, filling and capping machine. It is also called automatic water filling and sealing equipment. It has stable performance, advanced technology, beautiful shape and complete functions,
This machine is mainly used to produce mineral water, purified water and drinking water packed with PET bottles.
This machine is mainly used for washing, filling and sealing of PET water bottle.
Technical structure features:
1. Bottle washing part:
This machine is a rotary bottle washing machine, which is mainly used for washing new bottles of drinks, water and other products. The bottle is then sent to the filling section for product filling.
The PET bottle enters the equipment from the bottle dividing star wheel, and the bottle mouth is clamped by the clamp and the overturning mechanism, and the bottle mouth is turned downward. After the sterile water is washed, it is drained, and automatically turns over to the bottle mouth upward, and is transported to the filling machine through the bottle outlet star wheel.
The main structure of the equipment is made of high-quality stainless steel, and the contact part with the flushing medium and the external protective cover are made of high-quality stainless steel.
The bottle washing part is equipped with a water collecting plate to recover the bottle washing water.
Use air pressure control wear plate, effectively reduce wear.
2. Filling part:
The filling part can fill the water into the washed bottle sent by the bottle washing part.
The filling part is designed and manufactured by our company by introducing German technology and using the principle of fast filling.
High precision and quick filling valve. Full filling can be realized with low or conventional bottle mouth.
The double guide rod bottle lifting structure is adopted to make the bottle lifting and centering stable.
The main drive adopts gear transmission, that is, open combined transmission, with high efficiency, low noise, long service life, convenient maintenance and sufficient lubrication. The main motor speed of the machine is controlled by frequency converter, and the machine adopts stepless frequency conversion speed regulation.
The bottle guiding system is simple in structure and can be changed quickly and conveniently according to the bottle type. The whole machine adopts the bottleneck structure.
PLC automatic control, fault on-line display, such as bottle blockage, lack of cover, etc.
The material in the filling cylinder is controlled automatically, and the liquid level is detected by the liquid level sensor to ensure the stable liquid level and reliable filling.
The key parts and electrical components of the machine are imported products.
3. Screw capping part:
In the capping part, the lid arranged by the capping device is screwed onto the bottle of the filled product and sent to the next process by the conveyor chain.
The capping machine drives the rotary disc to rotate through the reducer. The cover leaves the hopper from the cover outlet under the action of centrifugal force. There is a positive and negative cover separation device at the outlet. When the reverse cover passes by, the cover will fall into the return pipe automatically, and the reverse cover will be blown into the hopper automatically by wind power. Only the positive cover can enter the slide smoothly. The cover quantity in the hopper is automatically detected by the photoelectric switch to control the capping machine, so as to ensure the best effect of the lower cover. When the front cover enters the slide, it can enter the feeding plate smoothly. In order to prevent accidents, an anti reverse cover dial is set on the slide at the same time to ensure that the cover entering the feeding cover plate is correct. A pair of photoelectric switches are also equipped on the slide. When no cover is detected, the main engine will be stopped immediately. In order to effectively remove the damaged cover without anti-theft ring and the remaining cover when cleaning the hopper, there is a movable outlet opposite the hopper outlet to meet this function.
The equipment is equipped with centralized automatic lubrication.
Product Tags:
|
|

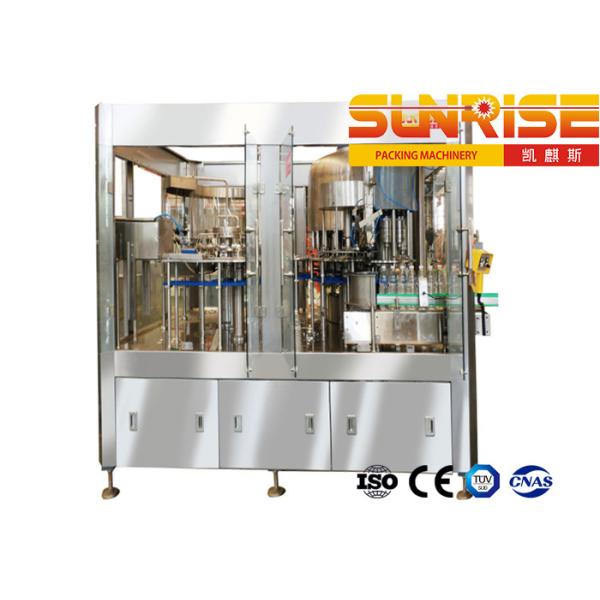

24 Flushing Heads Water Injection Machine , PET Bottled Water Line Images
|
